3521C | Vogt
Uninsulated forked cable lug, 1.5-2.5 mm², AWG 16 to 14, 5.3 mm, M5, metal, 3521C
Order No.: 07F968
EAN: 4099889588453
MPN:
3521C
Unit Price (€ / pc.)
0.1987 € *
Available: 1,275 pcs.
Total Price:
4.97 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1987 €
100 pcs.
0.1761 €
500 pcs.
0.1618 €
1000 pcs.
0.1476 €
5000 pcs.
0.1285 €
*incl. VAT plus shipping costs
Subject to prior sale

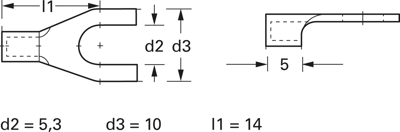

Cable lugs, spade tongue, not insulated, type Vogt 35.
Made of tinned electrolytic copper, with crimp connection
For rated cross-section 1.5 to 2.5 mm², type 35.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 1.5-2.5 mm² | |
| Thread size | M5 | |
| Material | copper, tin-plated | |
| max. operating temperature | 125 °C | |
| Version | forked cable lug | |
| Hole diameter | 5.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
