3521A | Vogt
Uninsulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 5.3 mm, M5, metal, 3521A
Order No.: 07F990
EAN: 4099889588705
MPN:
3521A
Unit Price (€ / pc.)
0.1571 € *
Available: 7,882 pcs.
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1571 €
100 pcs.
0.1416 €
500 pcs.
0.1297 €
1000 pcs.
0.1178 €
5000 pcs.
0.1023 €
*incl. VAT plus shipping costs
Subject to prior sale

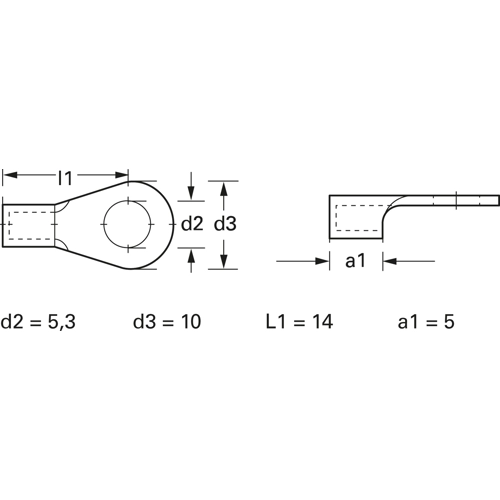

Cable lugs, ring tongue, not insulated, type Vogt 34../35.
To DIN 46234. With crimp connection
For rated cross-section 1.5 to 2.5 mm², type 35.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Thread size | M5 | |
| Isolated | No | |
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Nominal size according to DIN | DIN 46234 | |
| Cable cross-section | 1.5-2.5 mm² | |
| Material | electrolytic copper | |
| Hole diameter | 5.3 mm | |
| Colour | metal |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
