3510C | Vogt
Uninsulated forked cable lug, 0.5-1.0 mm², AWG 22 to 18, 5.3 mm, M5, metal, 3510C
Order No.: 07F964
EAN: 4099889588422
MPN:
3510C
Unit Price (€ / pc.)
0.0988 € *
Available: 977 pcs.
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0988 €
100 pcs.
0.0845 €
500 pcs.
0.0785 €
1000 pcs.
0.0655 €
*incl. VAT plus shipping costs
Subject to prior sale

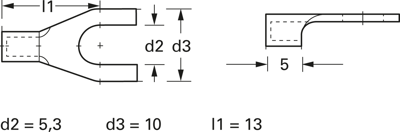

Cable lugs, spade tongue, not insulated, type Vogt 35.
Made of tinned electrolytic copper, with crimp connection
For rated cross-section 0.5 to 1.0 mm², type 35.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Thread size | M5 | |
| Hole diameter | 5.3 mm | |
| AWG cross-section | AWG 22 to 18 | |
| max. operating temperature | 125 °C | |
| Material | electrolytic copper | |
| Version | forked cable lug | |
| Isolated | No | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
