3510A | Vogt
Uninsulated ring cable lug, 0.5-1.0 mm², AWG 22 to 18, 5.3 mm, M5, metal, 3510A
Order No.: 07F984
EAN: 4099889588675
MPN:
3510A
Unit Price (€ / pc.)
0.1559 € *
Available: 2,963 pcs.
Next delivery: 9,700 pcs. on 2025-07-31
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1559 €
100 pcs.
0.1392 €
500 pcs.
0.1285 €
1000 pcs.
0.1166 €
5000 pcs.
0.1012 €
*incl. VAT plus shipping costs
Subject to prior sale

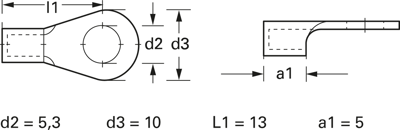

Cable lugs, ring tongue, not insulated, type Vogt 34../35.
To DIN 46234. With crimp connection
For rated cross-section 0.5 to 1.0 mm², type 35.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | electrolytic copper | |
| Cable cross-section | 0.5-1.0 mm² | |
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 18 | |
| max. operating temperature | 125 °C | |
| Colour | metal | |
| Hole diameter | 5.3 mm | |
| Nominal size according to DIN | DIN 46234 | |
| Isolated | No | |
| Thread size | M5 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Country of origin | CH |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
