3502A | Vogt
Uninsulated ring cable lug, 0.5-1.0 mm², AWG 22 to 18, 3.2 mm, M3, metal, 3502A
Order No.: 07F980
EAN: 4099889588606
MPN:
3502A
Unit Price (€ / pc.)
0.1035 € *
Available: 13,506 pcs.
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1035 €
100 pcs.
0.0940 €
500 pcs.
0.0857 €
1000 pcs.
0.0785 €
5000 pcs.
0.0678 €
*incl. VAT plus shipping costs
Subject to prior sale

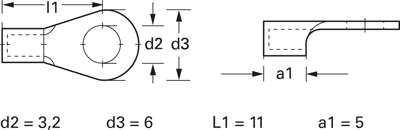

Cable lugs, ring tongue, not insulated, type Vogt 34../35.
To DIN 46234. With crimp connection
For rated cross-section 0.5 to 1.0 mm², type 35.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 18 | |
| Hole diameter | 3.2 mm | |
| Colour | metal | |
| Thread size | M3 | |
| max. operating temperature | 125 °C | |
| Nominal size according to DIN | DIN 46234 | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | electrolytic copper | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
