RGU-50GB-RD-68RAA | Vitrohm
Metal film resistor, 68 Ω, 0.5 W, ±2 %, RGU-50GB-RD-68RAA
Not suitable for new designs
Unit Price (€ / pc.)
0.7854 € *
Available: 393 pcs.
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.7021 €
100 pcs.
0.5236 €
500 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale
Metal film resistors, 0.5 W, tolerance 2.0 %, type Vitrohm RGU 526-0.
Molded version without cap, inflammability to IEC 695-2-2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | 100 ppm/K | |
| Tolerance | ±2 % | |
| Design | radial | |
| ohmic resistance | 68 Ω | |
| Power | 0.5 W | |

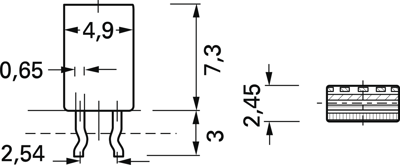

| Width | 4.9 mm | |
| Height | 7.3 mm | |
| Assembly | THT | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Version | metal film resistor | |
| Isolation voltage | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | PT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
