KPS800KB-RD-470RS0 | Vitrohm
Wirewound resistor, 470 Ω, 8 W, ±10 %, KPS800KB-RD-470RS0
Order No.: 38E772
EAN: 4099879690043
MPN:
KPS800KB-RD-470RS0
KP298-110B470R
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: 10 Weeks

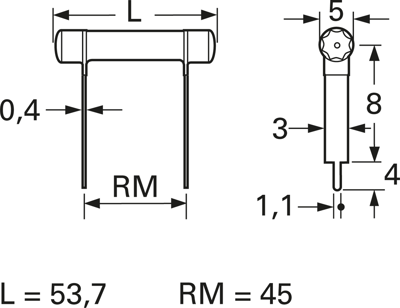

Wire-wound resistors, tolerance 10 %, type Vitrohm KP 29.
With radial PCB terminals, varnished, non-insulated, glass fiber substrate. Dielectric strength (1
Rated load 8.0 W, type KP 298-1.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | -80/+500 ppm/K | |
| Tolerance | ±10 % | |
| Design | radial | |
| ohmic resistance | 470 Ω | |
| Power | 8 W | |
| Height | 17 mm | |
| Assembly | THT | |
| max. operating temperature | 350 °C | |
| min. operating temperature | -55 °C | |
| Version | wirewound resistor | |
| Isolation voltage | 75 V | |
| Length | 53.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | PT |
| Original Packaging | Bulk with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
