KPS650KB-RD-22KS0 | Vitrohm
Wirewound resistor, 22 kΩ, 6.5 W, ±10 %, KPS650KB-RD-22KS0
Order No.: 38E664
EAN: 4099879689900
MPN:
KPS650KB-RD-22KS0
KP296-110B22K
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 10 Weeks
Wire-wound resistors, tolerance 10 %, type Vitrohm KP 29.
With radial PCB terminals, varnished, non-insulated, glass fiber substrate. Dielectric strength (1
Rated load 6.5 W, type KP 296-1.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 6.5 W | |
| Isolation voltage | 75 V | |
| Temperature coefficient | -80/+500 ppm/K | |
| max. operating temperature | 350 °C | |
| Tolerance | ±10 % | |

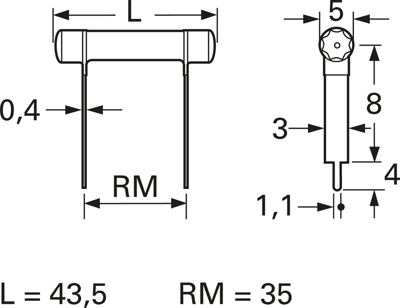

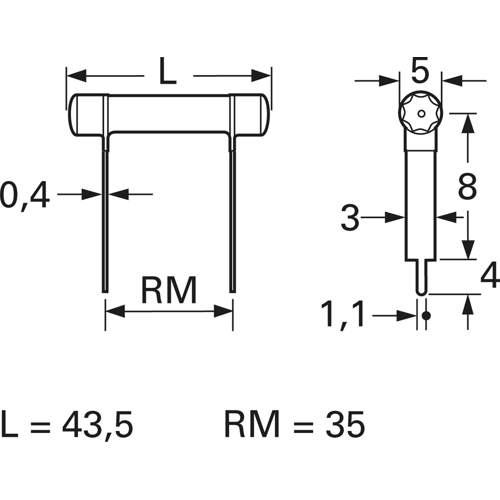

| Length | 43.5 mm | |
| Height | 17 mm | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| ohmic resistance | 22 kΩ | |
| Version | wirewound resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Original Packaging | Bulk with 250 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
