KPS500KB-RD-6K8S0 | Vitrohm

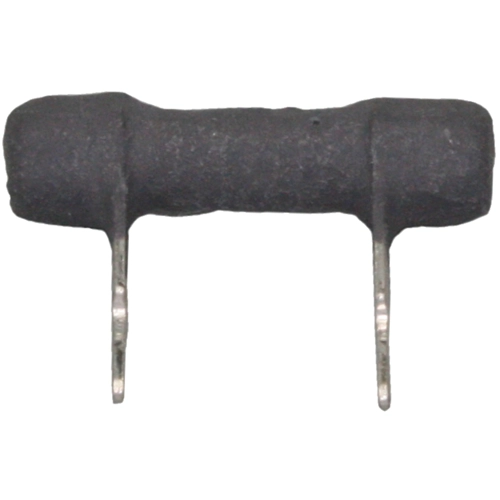

Wirewound resistor, 6.8 kΩ, 5 W, ±10 %, KPS500KB-RD-6K8S0
Order No.: 38E506
EAN: 4099879689825
MPN:
KPS500KB-RD-6K8S0
KP294-110B6K8
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 10 Weeks
Wire-wound resistors, tolerance 10 %, type Vitrohm KP 29.
With radial PCB terminals, varnished, non-insulated, glass fiber substrate. Dielectric strength (1
Rated load 5.0 W, type KP 294-1.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | -80/+500 ppm/K | |
| Tolerance | ±10 % | |
| Design | radial | |
| ohmic resistance | 6.8 kΩ | |
| Power | 5 W | |

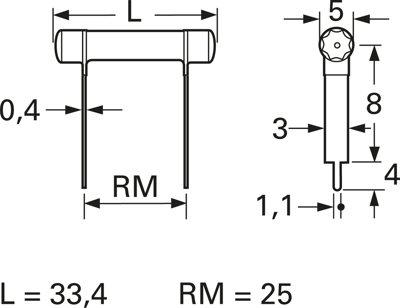

| Height | 17 mm | |
| Assembly | THT | |
| max. operating temperature | 350 °C | |
| min. operating temperature | -55 °C | |
| Version | wirewound resistor | |
| Isolation voltage | 75 V | |
| Length | 33.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | PT |
| Original Packaging | Bulk with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
