KPS500KB-RD-220RS0 | Vitrohm
Wirewound resistor, 220 Ω, 5 W, ±10 %, KPS500KB-RD-220RS0
Order No.: 38E470
EAN: 4099879689771
MPN:
KPS500KB-RD-220RS0
KP294-110B220R
Unit Price (€ / pc.)
0.2630 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Wire-wound resistors, tolerance 10 %, type Vitrohm KP 29.
With radial PCB terminals, varnished, non-insulated, glass fiber substrate. Dielectric strength (1
Rated load 5.0 W, type KP 294-1.
Technical specifications
| Temperature coefficient | -80/+500 ppm/K | |
| Assembly | THT | |
| Height | 17 mm | |
| Power | 5 W | |

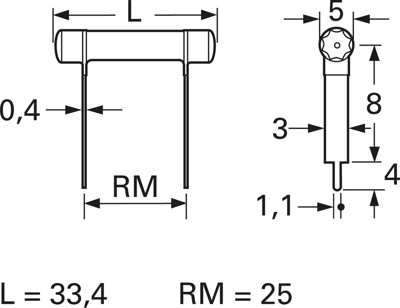

| Length | 33.4 mm | |
| Version | wirewound resistor | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Isolation voltage | 75 V | |
| Tolerance | ±10 % | |
| max. operating temperature | 350 °C | |
| ohmic resistance | 220 Ω |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 250 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
