KNS100FB-RJ-R03T0 | Vitrohm

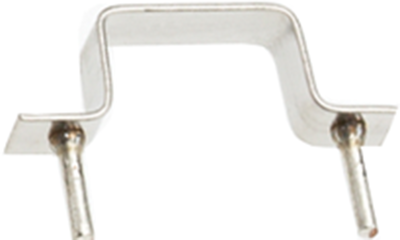

Metal strip resistor, 30 mΩ, 1 W, ±1 %, KNS100FB-RJ-R03T0
Order No.: 36E579
EAN: 4099879686046
MPN:
KNS100FB-RJ-R03T0
KNA361-31B0R03
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Low-resistance metal strip resistors, tolerance 1.0 %, type Vitrohm KNA.
Radial; Tolerance: ±1.0 %. Temperature coefficient: TC +200 to +1200 (depending on the value). Load derating: linear +70 to +300 °C. Operating temperatures: –55 to +300 °C.
Rated load 1.0 W, type KNA361-3.
Grid: 11.43 mm. Height: 8.0 mm.
Type: 0R03
Technical specifications
| Temperature coefficient | +200/+1200 ppm/K | |
| Assembly | THT | |
| Height | 6.5 mm | |
| Power | 1 W | |
| Length | 16 mm | |
| Version | low ohmic metal strip resistor | |
| Design | radial | |
| min. operating temperature | -70 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 300 °C | |
| ohmic resistance | 30 mΩ |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
