KHS700KB-AX-6K8AA | Vitrohm
Wirewound resistor, 6.8 kΩ, 7 W, ±10 %, KHS700KB-AX-6K8AA
Unit Price (€ / pc.)
1.4161 € *
Next delivery: 800 pcs. on 2026-03-06
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.3090 €
50 pcs.
1.1543 €
200 pcs.
1.0234 €
800 pcs.
0.9044 €
3200 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

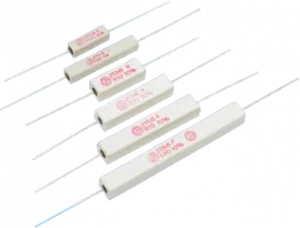

Wire-wound resistors, tolerance 10 %, type Vitrohm KH.
Rated load 7.0 W, type KH210-8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 350 °C | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Temperature coefficient | ±10 ppm/K | |
| Tolerance | ±10 % | |

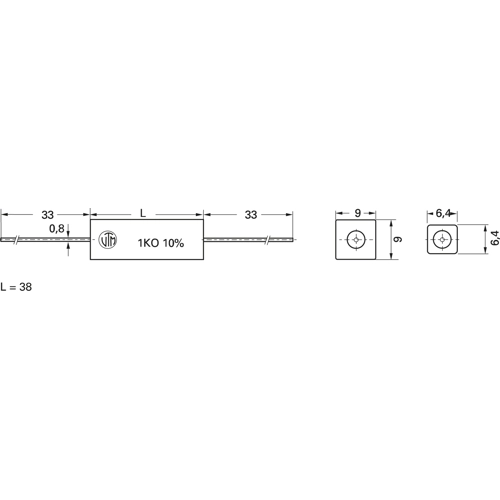

| Length | 38 mm | |
| Power | 7 W | |
| Width | 6.4 mm | |
| Isolation voltage | 2 kV | |
| ohmic resistance | 6.8 kΩ | |
| Height | 6.4 mm | |
| Version | wirewound resistor | |
| Design | axial |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | PT |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
