KHS11AKB-AX-18KAA | Vitrohm
Wirewound resistor, 18 kΩ, 11 W, ±10 %, KHS11AKB-AX-18KAA
Unit Price (€ / pc.)
1.2971 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
129.71 € *
Price list
Quantity
Price per unit*
100 pcs.
1.2971 €
500 pcs.
1.1305 €
1000 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound resistors, tolerance 10 %, type Vitrohm KH.
Rated load 11 W, type KH216-8.

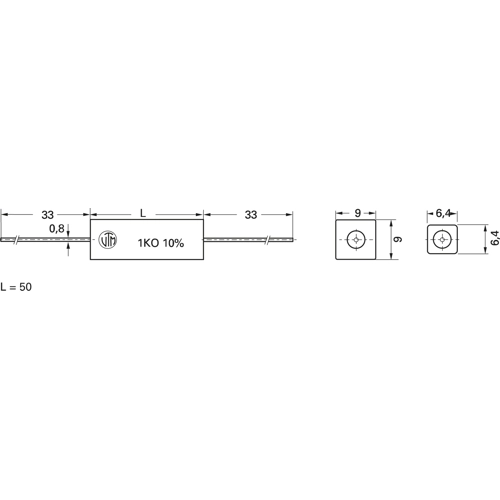

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 9 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 350 °C | |
| Version | wirewound resistor | |
| Assembly | THT | |
| Power | 11 W | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±10 ppm/K | |
| Width | 9 mm | |
| Design | axial | |
| Length | 50 mm | |
| Isolation voltage | 2 kV | |
| ohmic resistance | 18 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | PT |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
