KHS10AKB-AX-4K7AA | Vitrohm
Wirewound resistor, 4.7 kΩ, 9 W, ±10 %, KHS10AKB-AX-4K7AA
Order No.: 48E450
EAN: 4099879695604
MPN:
KHS10AKB-AX-4K7AA
KH214-810B4K7
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 25 Weeks
Wire-wound resistors, tolerance 10 %, type Vitrohm KH.
Rated load 9.0 W, type KH214-8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 9 W | |
| Isolation voltage | 2 kV | |
| Temperature coefficient | ±10 ppm/K | |
| max. operating temperature | 350 °C | |
| Tolerance | ±10 % | |

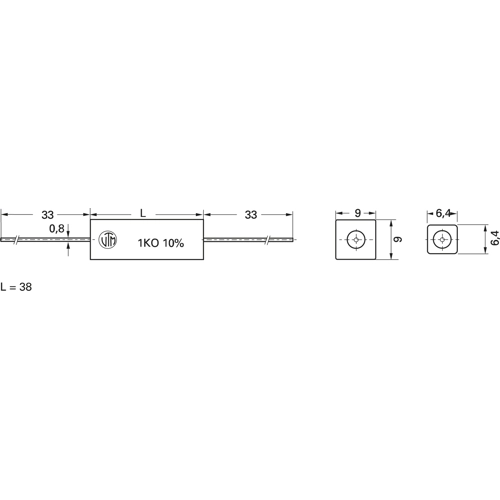

| Length | 38 mm | |
| Height | 9 mm | |
| Assembly | THT | |
| Width | 9 mm | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| ohmic resistance | 4.7 kΩ | |
| Version | wirewound resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Original Packaging | Bulk with 100 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
