KCS200KT-73-560RAA | Vitrohm
Wirewound resistor, 560 Ω, 2 W, ±10 %, KCS200KT-73-560RAA
Unit Price (€ / pc.)
0.4332 € *
Available: 1,430 pcs.
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4332 €
10 pcs.
0.3094 €
100 pcs.
0.2642 €
500 pcs.
0.2297 €
1000 pcs.
0.2083 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound resistors, 1.0 and 2.0 W, with fuse characteristics, tolerance 10 %, type Vitrohm KC.
Rated load 2.0 W, type KC202.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 75 V | |
| max. operating temperature | 350 °C | |

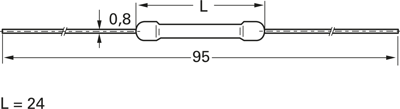

| diameter | 4.5 mm | |
| Version | wirewound resistor | |
| ohmic resistance | 560 Ω | |
| Assembly | THT | |
| Temperature coefficient | -80/+500 ppm/K | |
| Power | 2 W | |
| Tolerance | ±10 % | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| Length | 24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
