KCS200KT-73-27RAA | Vitrohm
Wirewound resistor, 27 Ω, 2 W, ±10 %, KCS200KT-73-27RAA
Order No.: 40E230
EAN: 4099879693389
MPN:
KCS200KT-73-27RAA
KC202-010T27R
Unit Price (€ / pc.)
0.1630 € *
Standard delivery time from the manufacturer is: 8 Weeks
Wire-wound resistors, 1.0 and 2.0 W, with fuse characteristics, tolerance 10 %, type Vitrohm KC.
Rated load 2.0 W, type KC202.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 75 V | |
| diameter | 4.5 mm | |
| Assembly | THT | |
| Version | wirewound resistor | |
| Temperature coefficient | -80/+500 ppm/K | |
| max. operating temperature | 350 °C | |
| Power | 2 W | |
| Design | axial | |
| ohmic resistance | 27 Ω | |
| Tolerance | ±10 % | |

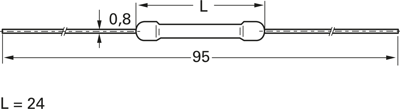

| Length | 24 mm | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
