CRS300JT-73-5R6AA | Vitrohm

Wirewound resistor, 5.6 Ω, 3 W, ±5 %, CRS300JT-73-5R6AA

Order No.: 40E842
EAN: 4099879694096
MPN:
CRS300JT-73-5R6AA
CR254-05T5R6
Series: CR

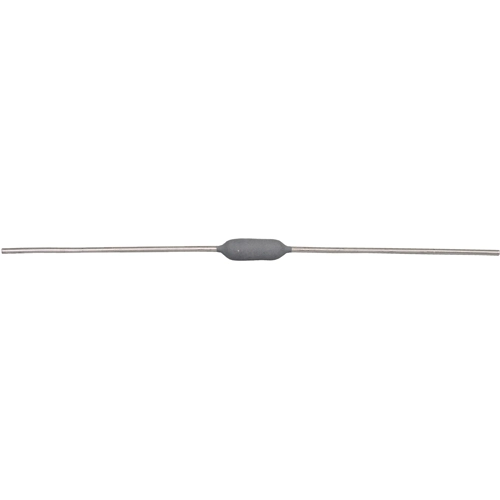

CRS300JT-73-5R6AA Vitrohm Wirewound Resistors
Image may differ
Unit Price (€ / pc.)
0.1892 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
378.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.1892 €

Wire-wound resistors, 1.1 to 5.0 W, tolerance 5.0 %, type Vitrohm CR.

Axial, ceramic substrate, varnished, non-insulated. Dielectric strength (1

Rated load 3.0 W, type CR 254-0.

Technical specifications
Filter Property Value
ohmic resistance 5.6 Ω
Design axial
Length 12.6 mm
Power 3 W
diameter 5.5 mm
Version wirewound resistor
Temperature coefficient ±20 ppm/K
max. operating temperature 350 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±5 %
Isolation voltage 75 V
Logistics
Property Value
Original Packaging Reel with 1,000 pieces
Country of origin PT
Customs tariff number 85332100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
