CRP300JT-73-680RAA | Vitrohm

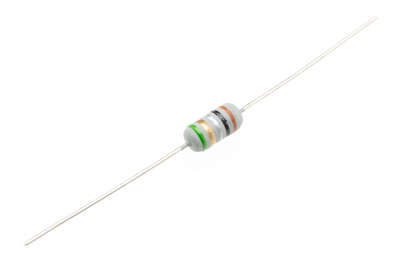

Wirewound resistor, 680 Ω, 3 W, ±5 %, CRP300JT-73-680RAA
Unit Price (€ / pc.)
0.3689 € *
Available: 206 pcs.
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
100 pcs.
0.2725 €
500 pcs.
0.2190 €
1000 pcs.
0.1833 €
5000 pcs.
0.1559 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound resistors, 2.0 and 3.0 W, 5.0 % tolerance, type Vitrohm CRP252-1/CRP254-1.
Axial, pulse-proof, varnished ceramic (UL 94-V0); Temperature coefficient: TC 120. Insulation voltage (1.0 min): max. 500 V. Operating temperatures: –55 to +350 °C. Climate category: 55/350/56. Load derating: linear +70 to +350 °C (0 W). Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Type CRP254-1.
Rated load at +40/+70 °C: 3.0/2.5 W. Thermal resistance: 70 K/W. Dimensions: 5.5 x 12.6 mm.
Type: 680R
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5.5 mm | |
| Power | 3 W | |
| Isolation voltage | 500 V | |
| Temperature coefficient | ±120 ppm/K | |
| max. operating temperature | 350 °C | |
| Tolerance | ±5 % | |
| Length | 12.6 mm | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| ohmic resistance | 680 Ω | |
| Version | wirewound resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Original Packaging | Ammopack with 1,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
