CRP300JT-73-470RAA | Vitrohm

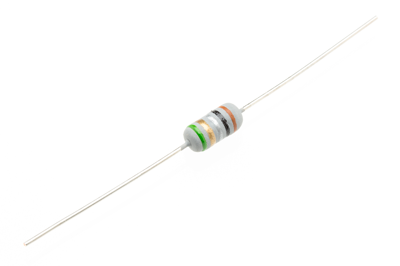

Wirewound resistor, 470 Ω, 3 W, ±5 %, CRP300JT-73-470RAA
Order No.: 37E6319
EAN: 4099879688620
MPN:
CRP300JT-73-470RAA
CRP254-15T470R
Unit Price (€ / pc.)
0.1452 € *
Available: 2,000 pcs.
Leadtime: 8 Weeks **
Wire-wound resistors, 2.0 and 3.0 W, 5.0 % tolerance, type Vitrohm CRP252-1/CRP254-1.
Axial, pulse-proof, varnished ceramic (UL 94-V0); Temperature coefficient: TC 120. Insulation voltage (1.0 min): max. 500 V. Operating temperatures: –55 to +350 °C. Climate category: 55/350/56. Load derating: linear +70 to +350 °C (0 W). Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Type CRP254-1.
Rated load at +40/+70 °C: 3.0/2.5 W. Thermal resistance: 70 K/W. Dimensions: 5.5 x 12.6 mm.
Type: 470R
Technical specifications
| Temperature coefficient | ±120 ppm/K | |
| Assembly | THT | |
| diameter | 5.5 mm | |
| Power | 3 W | |
| Length | 12.6 mm | |
| Version | wirewound resistor | |
| Design | axial | |
| min. operating temperature | -55 °C | |
| Isolation voltage | 500 V | |
| Tolerance | ±5 % | |
| max. operating temperature | 350 °C | |
| ohmic resistance | 470 Ω |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
