RWC502FK-13-R1AA | Vitrohm

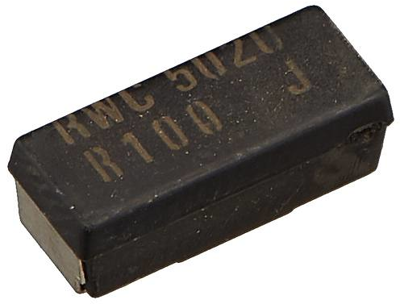

Resistor, wirewound, SMD 5020, 100 mΩ, 2.2 W, ±1 %, RWC502FK-13-R1AA
Unit Price (€ / pc.)
1.5827 € *
Available: 90 pcs.
Next delivery: 4,500 pcs. on 2025-11-28
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.1305 €
100 pcs.
0.9758 €
500 pcs.
0.8449 €
1000 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD metal strip / wire-wound resistors, 1.6 W, tolerance 1.0 %, type Vitrohm RWN 5020/RWC 5020.
Wire wound on ceramic, type RWC 5020.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 12 mm | |
| max. operating temperature | 200 °C | |
| Height | 4.5 mm | |
| ohmic resistance | 100 mΩ | |
| Power | 2.2 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±20 ppm/K | |
| min. operating temperature | -55 °C | |
| Technology | wirewound | |
| Design | SMD 5020 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,500 pieces |
| Country of origin | PT |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
