BZX85C39-T | Vishay

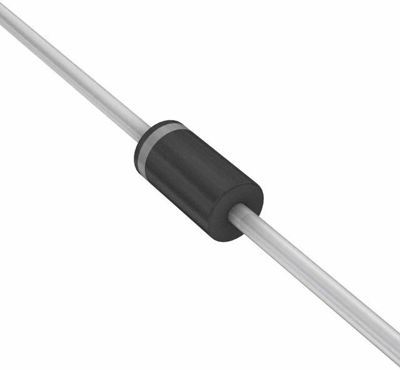

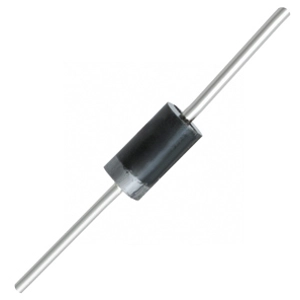

Silicon planar zener diode, 39 V, 1.3 W, DO-41, BZX85C39-T
Unit Price (€ / pc.)
0.0952 € *
Standard delivery time from the manufacturer is: On Request
Zener diodes, 1.3 W, series BZX85.
Power losses: 1.3 W. Package: DO41.
Technical attributes (type, Zener voltage, manufacturer): BZX85/C39, 39 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.5 mm | |
| Junction temperature (max.) | 175 °C | |
| max. operating temperature | 175 °C | |
| Zener voltage | 39 V | |
| Length | 4.1 mm | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Number of diodes | 1 | |
| On-State Voltage | 1 V | |
| Forward Current | 2 mA | |
| Power loss | 1.3 W | |
| Product type | silicon planar zener diode | |
| Enclosure | DO-41 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 25,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
