WR404140A3009J4100 | Vishay

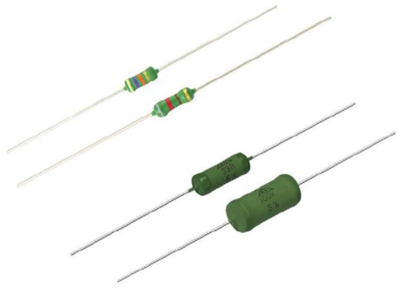

Metal oxide film resistor, 30 Ω, 2 W, ±5 %, WR404140A3009J4100
Order No.: 04E8942
EAN: 4099879664631
MPN:
WR404140A3009J4100
Unit Price (€ / pc.)
0.1202 € *
Standard delivery time from the manufacturer is: 19 Weeks
Metal oxide resistor, WR404140A3009J4100, Vishay
The WR404140A3009J4100 is a high pulse load, high power metal oxide leaded resistor with high temperature and heat resistant encapsulation.
Features
- High power pulse withstanding capability
- High power dissipation in small size
Applications
- Automotive electronics
- Industrial electronics
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 3.9 mm | |
| Power | 2 W | |
| Temperature coefficient | ±200 ppm/K | |
| max. operating temperature | 200 °C | |
| Tolerance | ±5 % | |
| Length | 3.9 mm | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| ohmic resistance | 30 Ω | |
| Version | metal oxide resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
