VR68000001004JAC00 | Vishay

Metal film resistor, 1 MΩ, 1 W, ±5 %, VR68000001004JAC00

Order No.: 31E248
EAN: 4099879679772
MPN:
VR68000001004JAC00
Series: VR68
VR68000001004JAC00 Vishay Wirewound Resistors Image 1
VR68000001004JAC00 Vishay Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
1.7731 € *
Available: 1,043 pcs.
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.1067 €
50 pcs.
0.9758 €
500 pcs.
0.7735 €
1000 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

Metal glaze resistor, VR68 5% AC 1M0, Vishay

The VR68 5% AC 1M0 is a high ohmic/high voltage metal glaze leaded resistor deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wire is welded to the end-caps. This resistor is coated with a light blue lacquer which provides electrical, mechanical, and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents.

Applications

  • High humidity environment
  • Power supplies
  • Automotive electronics
  • White goods
Technical specifications
Filter Property Value
Isolation voltage 700 V
max. operating temperature 155 °C

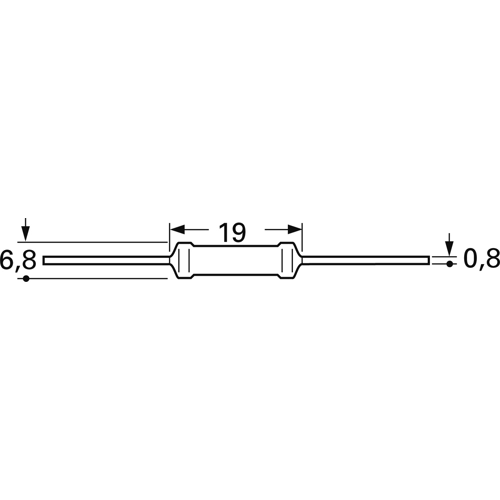

diameter 6.8 mm
Version metal film resistor
ohmic resistance 1 MΩ
Assembly THT
Temperature coefficient ±200 ppm/K
Power 1 W
Tolerance ±5 %
min. operating temperature -55 °C
Design axial
Length 18 mm
Logistics
Property Value
Country of origin IN
Customs tariff number 85332100
Original Packaging Ammopack with 500 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
