S 102 C 0,1% 600R | Vishay

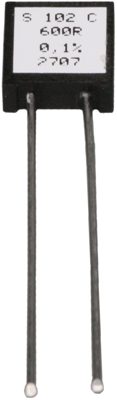

Metal film resistor, 600 Ω, 0.6 W, ±0.1 %, S 102 C 0,1% 600R
Unit Price (€ / pc.)
8.4728 € *
Available: 19 pcs.
Total Price:
8.47 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4728 €
10 pcs.
7.7112 €
*incl. VAT plus shipping costs
Subject to prior sale
Precision metal film resistors, 0.6 W, type Vishay/Foil Resistors S 102C.
For demanding applications; Rated load at +70/+125 °C: 0.6/0.3 W, TC: typically ±2.0 ppm/°C. Breakdown voltage: 300 V. Current noise: 0.010 µV (RMS)/–40 dB. Rise time: 1.0 ns at 1.0 kohm. Inductance: 0.08 µH typical max. 0.1 µH. Capacitance: 0.5 pF typical max. 1.0 pF. Dimensions: W 2.7 x L 7.7 x H 8.3 mm. Hook-up wires: AWG 22. Grid: 3.81 mm (radial). Sliding scale prices are valid exclusively for the quantity per resistance value ordered. The values listed are preference values. Other values (as of 10 items per value) are also available on short-term notice and at extra charge.
Tolerance ±0.1 %, type S 102C.
Type: 600R
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 8.28 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Version | precision metal film resistor | |
| Assembly | THT | |
| Power | 0.6 W | |
| Tolerance | ±0.1 % | |
| Temperature coefficient | ±2 ppm/K | |
| Width | 2.67 mm | |
| Design | radial | |
| Length | 7.62 mm | |
| ohmic resistance | 600 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | IL |
| Original Packaging | Bulk with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
