S 102 C 0,005% 500R | Vishay
Metal film resistor, 500 Ω, 0.6 W, ±0.005 %, S 102 C 0,005% 500R
Unit Price (€ / pc.)
34.2125 € *
Standard delivery time from the manufacturer is: On Request

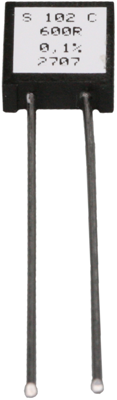

Precision metal film resistors, 0.6 W, type Vishay/Foil Resistors S 102C.
For demanding applications
Tolerance ±0.005 %, type S 102C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 500 Ω | |
| Width | 2.67 mm | |
| Tolerance | ±0.005 % | |
| Temperature coefficient | ±2 ppm/K | |
| max. operating temperature | 125 °C | |
| Power | 0.6 W | |
| min. operating temperature | -55 °C | |
| Version | precision metal film resistor | |
| Assembly | THT | |
| Design | radial | |
| Height | 8.28 mm | |
| Length | 7.62 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 50 pieces |
| Country of origin | IL |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
