RH050R3900FE05 | Vishay

Wirewound resistor, 390 mΩ, 50 W, ±1 %, RH050R3900FE05

Order No.: 63E864
EAN: 4099879704542
MPN:
RH050R3900FE05
Series: RH

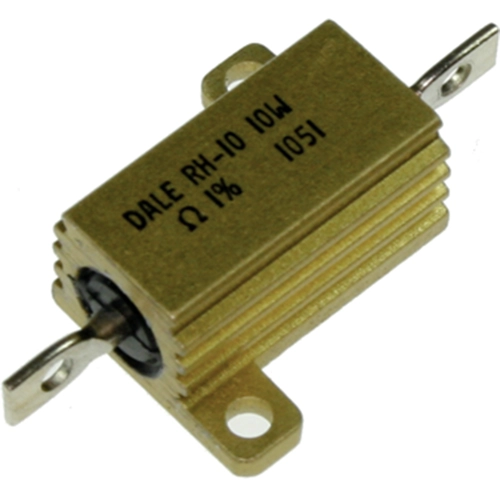

RH050R3900FE05 Vishay Wirewound Resistors Image 1
RH050R3900FE05 Vishay Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
14.4704 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,447.04 € *
Price list
Quantity
Price per unit*
100 pcs.
14.4704 €
200 pcs.
13.1495 €
*incl. VAT plus shipping costs
Subject to prior sale

50/30 W, tolerance 1.0 %, type RH-50.

Certified to MiL-R-18546 RE-75 G (30 W)

Technical specifications
Filter Property Value
ohmic resistance 390 mΩ
max. operating temperature 250 °C
Length 49.99 mm
min. operating temperature -55 °C
Height 15.49 mm
Assembly chassis mounting
Width 21.44 mm
Design chassis
Power 50 W
Temperature coefficient ±100 ppm/K
Version wirewound resistor
Tolerance ±1 %
Logistics
Property Value
Customs tariff number 85332900
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
