RH05039R00FE05 | Vishay
Wirewound resistor, 39 Ω, 50 W, ±1 %, RH05039R00FE05
Unit Price (€ / pc.)
10.1745 € *
Available: 90 pcs.
Total Price:
10.17 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1745 €
10 pcs.
7.2709 €
25 pcs.
6.2118 €
50 pcs.
5.3907 €
100 pcs.
4.9147 €
*incl. VAT plus shipping costs
Subject to prior sale
50/30 W, tolerance 1.0 %, type RH-50.
Certified to MiL-R-18546 RE-75 G (30 W)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 39 Ω | |
| max. operating temperature | 250 °C | |

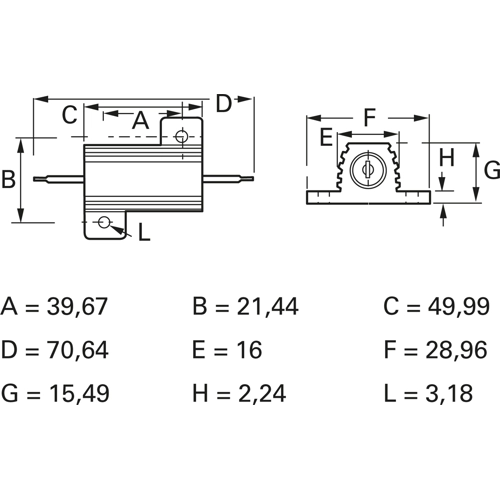

| Length | 49.99 mm | |
| min. operating temperature | -55 °C | |
| Height | 15.49 mm | |
| Assembly | chassis mounting | |
| Width | 21.44 mm | |
| Design | chassis | |
| Power | 50 W | |
| Temperature coefficient | ±20 ppm/K | |
| Version | wirewound resistor | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
