RH025R3300FE05 | Vishay
Wirewound resistor, 330 mΩ, 25 W, ±1 %, RH025R3300FE05
Unit Price (€ / pc.)
9.6747 € *
Available: 37 pcs.
Total Price:
9.67 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6747 €
10 pcs.
8.5085 €
50 pcs.
7.9254 €
150 pcs.
7.5684 €
500 pcs.
7.1995 €
*incl. VAT plus shipping costs
Subject to prior sale
25/20 W, tolerance 1.0 %, type RH-25.
Certified to MiL-R-18546 RE-70 G (20 W)

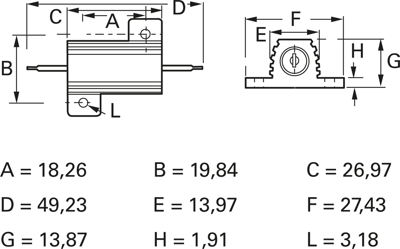

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 13.87 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 250 °C | |
| Version | wirewound resistor | |
| Assembly | chassis mounting | |
| Power | 25 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±100 ppm/K | |
| Width | 19.84 mm | |
| Design | chassis | |
| Length | 26.97 mm | |
| ohmic resistance | 330 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
