RH0258K200FE05 | Vishay
Wirewound resistor, 8.2 kΩ, 25 W, ±1 %, RH0258K200FE05
Unit Price (€ / pc.)
4.1650 € *
Available: 11 pcs.
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1650 €
10 pcs.
3.6533 €
100 pcs.
3.2130 €
250 pcs.
3.0940 €
1000 pcs.
2.8917 €
*incl. VAT plus shipping costs
Subject to prior sale
25/20 W, tolerance 1.0 %, type RH-25.
Certified to MiL-R-18546 RE-70 G (20 W)
Technical specifications
| Temperature coefficient | ±20 ppm/K | |
| Assembly | chassis mounting | |

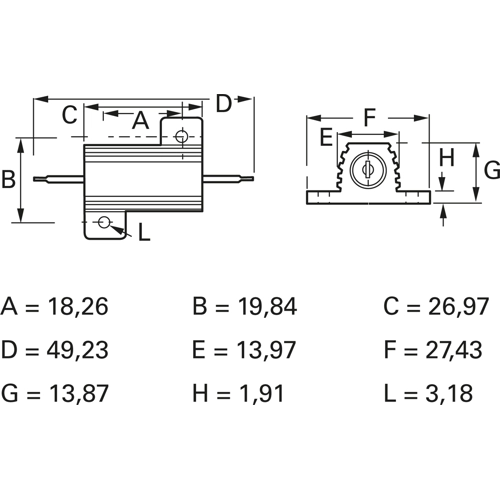

| Width | 19.84 mm | |
| Height | 13.87 mm | |
| Power | 25 W | |
| Length | 26.97 mm | |
| Version | wirewound resistor | |
| Design | chassis | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 250 °C | |
| ohmic resistance | 8.2 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85332900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
