RH02568K00FE05 | Vishay

Wirewound resistor, 68 kΩ, 25 W, ±1 %, RH02568K00FE05

Order No.: 63E809
EAN: 4099879704443
MPN:
RH02568K00FE05
Series: RH
RH02568K00FE05 Vishay Wirewound Resistors Image 1
RH02568K00FE05 Vishay Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
9.5438 € *
Available: 101 pcs.
Total Price:
9.54 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5438 €
10 pcs.
8.3895 €
100 pcs.
7.3661 €
250 pcs.
7.0686 €
1000 pcs.
6.6164 €
*incl. VAT plus shipping costs
Subject to prior sale

25/20 W, tolerance 1.0 %, type RH-25.

Certified to MiL-R-18546 RE-70 G (20 W)

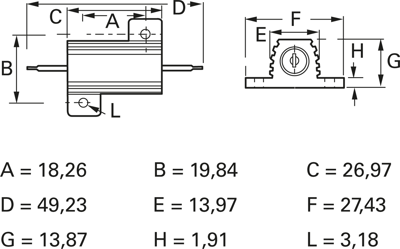

Technical specifications
Filter Property Value
Length 26.97 mm
Tolerance ±1 %
Assembly chassis mounting
Power 25 W
Height 13.87 mm
max. operating temperature 250 °C
ohmic resistance 68 kΩ
Width 19.84 mm
Temperature coefficient ±20 ppm/K
min. operating temperature -55 °C
Design chassis
Version wirewound resistor
Logistics
Property Value
Customs tariff number 85332900
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
