RH02547K00FE05 | Vishay
Wirewound resistor, 47 kΩ, 25 W, ±1 %, RH02547K00FE05
Unit Price (€ / pc.)
9.9484 € *
Available: 75 pcs.
Total Price:
9.95 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9484 €
10 pcs.
7.1043 €
25 pcs.
6.0690 €
50 pcs.
5.2836 €
100 pcs.
4.8076 €
*incl. VAT plus shipping costs
Subject to prior sale
25/20 W, tolerance 1.0 %, type RH-25.
Certified to MiL-R-18546 RE-70 G (20 W)

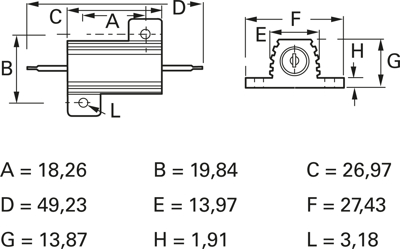

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 13.87 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 250 °C | |
| Version | wirewound resistor | |
| Assembly | chassis mounting | |
| Power | 25 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±20 ppm/K | |
| Width | 19.84 mm | |
| Design | chassis | |
| Length | 26.97 mm | |
| ohmic resistance | 47 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
