RH0253R300FE05 | Vishay
Wirewound resistor, 3.3 Ω, 25 W, ±1 %, RH0253R300FE05
Unit Price (€ / pc.)
10.0198 € *
Available: 6 pcs.
Next delivery: 200 pcs. on 2026-02-06
Total Price:
10.02 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0198 €
10 pcs.
7.1519 €
100 pcs.
6.1166 €
500 pcs.
5.3193 €
1000 pcs.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale
25/20 W, tolerance 1.0 %, type RH-25.
Certified to MiL-R-18546 RE-70 G (20 W)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 3.3 Ω | |
| max. operating temperature | 250 °C | |

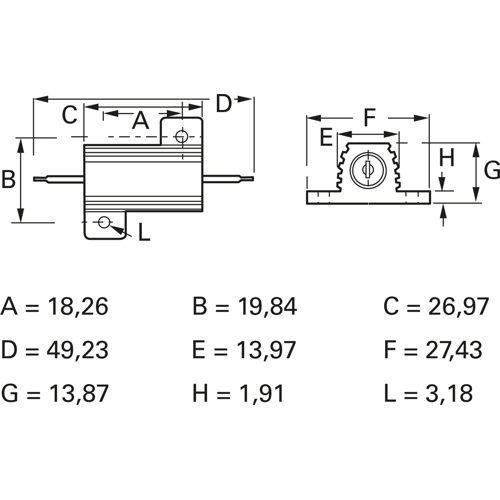

| Length | 26.97 mm | |
| min. operating temperature | -55 °C | |
| Height | 13.87 mm | |
| Assembly | chassis mounting | |
| Width | 19.84 mm | |
| Design | chassis | |
| Power | 25 W | |
| Temperature coefficient | ±50 ppm/K | |
| Version | wirewound resistor | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
