RH0252K200FE05 | Vishay
Wirewound resistor, 2.2 kΩ, 25 W, ±1 %, RH0252K200FE05
Unit Price (€ / pc.)
4.4268 € *
Standard delivery time from the manufacturer is: 9 Weeks
25/20 W, tolerance 1.0 %, type RH-25.
Certified to MiL-R-18546 RE-70 G (20 W)

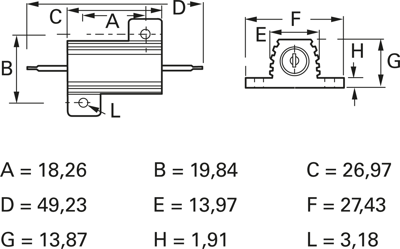

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 13.87 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 250 °C | |
| Version | wirewound resistor | |
| Assembly | chassis mounting | |
| Power | 25 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±20 ppm/K | |
| Width | 19.84 mm | |
| Design | chassis | |
| Length | 26.97 mm | |
| ohmic resistance | 2.2 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
