RH02522K00FE05 | Vishay
Wirewound resistor, 22 kΩ, 25 W, ±1 %, RH02522K00FE05
Unit Price (€ / pc.)
8.8417 € *
Available: 93 pcs.
Total Price:
8.84 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8417 €
10 pcs.
7.7826 €
100 pcs.
6.8425 €
250 pcs.
6.5450 €
1000 pcs.
6.1285 €
*incl. VAT plus shipping costs
Subject to prior sale
25/20 W, tolerance 1.0 %, type RH-25.
Certified to MiL-R-18546 RE-70 G (20 W)

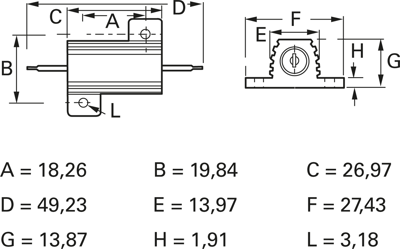

Technical specifications
| Temperature coefficient | ±20 ppm/K | |
| Assembly | chassis mounting | |
| Width | 19.84 mm | |
| Height | 13.87 mm | |
| Power | 25 W | |
| Length | 26.97 mm | |
| Version | wirewound resistor | |
| Design | chassis | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 250 °C | |
| ohmic resistance | 22 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85332900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
