RH0105R600FE05 | Vishay
Wirewound resistor, 5.6 Ω, 12.5 W, ±1 %, RH0105R600FE05
Unit Price (€ / pc.)
4.9028 € *
Available: 84 pcs.
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.3197 €
100 pcs.
3.7723 €
250 pcs.
3.6295 €
1000 pcs.
3.4034 €
*incl. VAT plus shipping costs
Subject to prior sale
12.5/10 W, tolerance 1.0 %, type RH-10.
Certified to MiL-R-18546 RE-65 G (10 W)

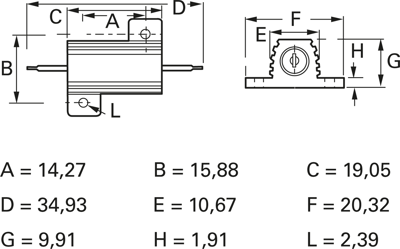

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 9.91 mm | |
| ohmic resistance | 5.6 Ω | |
| Design | chassis | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Length | 19.05 mm | |
| Width | 15.88 mm | |
| Temperature coefficient | ±50 ppm/K | |
| Assembly | chassis mounting | |
| Version | wirewound resistor | |
| Power | 12.5 W | |
| max. operating temperature | 250 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
