RH0102K200FE05 | Vishay
Wirewound resistor, 2.2 kΩ, 12.5 W, ±1 %, RH0102K200FE05
Unit Price (€ / pc.)
4.6648 € *
Next delivery: 53 pcs. on 2025-12-19
Total Price:
4.66 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6648 €
10 pcs.
4.1055 €
100 pcs.
3.5938 €
250 pcs.
3.4510 €
1000 pcs.
3.2368 €
*incl. VAT plus shipping costs
Subject to prior sale
12.5/10 W, tolerance 1.0 %, type RH-10.
Certified to MiL-R-18546 RE-65 G (10 W)

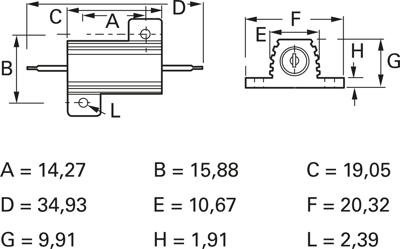

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 9.91 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 250 °C | |
| Version | wirewound resistor | |
| Assembly | chassis mounting | |
| Power | 12.5 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±20 ppm/K | |
| Width | 15.88 mm | |
| Design | chassis | |
| Length | 19.05 mm | |
| ohmic resistance | 2.2 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
