RH00556R00FE05 | Vishay
Wirewound resistor, 56 Ω, 7.5 W, ±1 %, RH00556R00FE05
Unit Price (€ / pc.)
8.6394 € *
Available: 8 pcs.
Next delivery: 100 pcs. on 2025-08-22
Total Price:
8.64 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6394 €
10 pcs.
6.1523 €
25 pcs.
5.2598 €
50 pcs.
4.5815 €
100 pcs.
4.1650 €
*incl. VAT plus shipping costs
Subject to prior sale
Precision wire-wound power resistors, 7.5/5.0 W, tolerance 1.0 %, type Vishay/Dale RH-5.
For chassis mounting, hermetically sealed aluminum package, certified to MiL-R-18546 RE-60 G

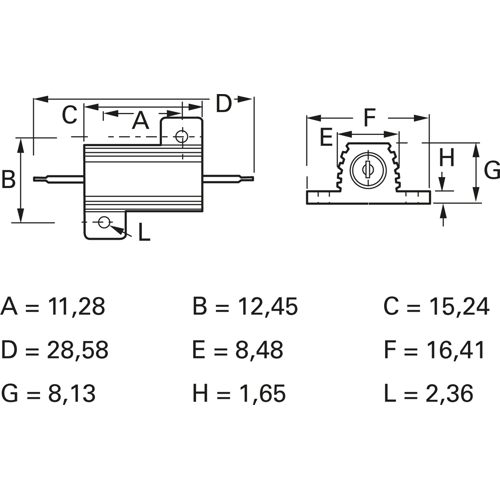

Technical specifications
| Length | 15.24 mm | |
| Tolerance | ±1 % | |
| Assembly | chassis mounting | |
| Power | 7.5 W | |
| Height | 8.13 mm | |
| max. operating temperature | 250 °C | |
| ohmic resistance | 56 Ω | |
| Width | 12.45 mm | |
| Temperature coefficient | ±20 ppm/K | |
| min. operating temperature | -55 °C | |
| Design | chassis | |
| Version | wirewound resistor |
Download
Logistics
| Customs tariff number | 85332900 |
| Country of origin | MX |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
