MBE04140C1201FC100 | Vishay
Metal film resistor, 1.2 kΩ, 0.65 W, ±1 %, MBE04140C1201FC100
Unit Price (€ / pc.)
0.2451 € *
Standard delivery time from the manufacturer is: 10 Weeks

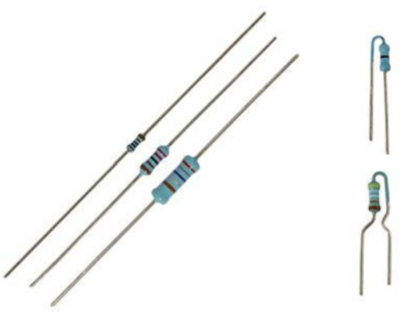

Metal film resistor, MBE04140C1201FC100, Vishay
The MBE04140C1201FC100 is a leaded metal film resistor with established reliability. This product is the perfect choice for all high-reliability applications typically found in military, aircraft and spacecraft electronics.
Features
- Established reliability
- Advanced thin film technology
- Intrinsic sulfur resistance
- Single lot date code
Applications
- Military
- Avionics
- Space
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±50 ppm/K | |
| Tolerance | ±1 % | |
| Design | axial | |
| diameter | 4 mm | |
| ohmic resistance | 1.2 kΩ | |
| Power | 0.65 W | |
| Assembly | THT | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Version | metal film resistor | |
| Isolation voltage | 75 V | |
| Length | 11.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | CZ |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
