MBA02040C4707JC100 | Vishay
Metal film resistor, 470 mΩ, 0.25 W, ±5 %, MBA02040C4707JC100
Unit Price (€ / pc.)
0.0738 € *
Standard delivery time from the manufacturer is: 7 Weeks

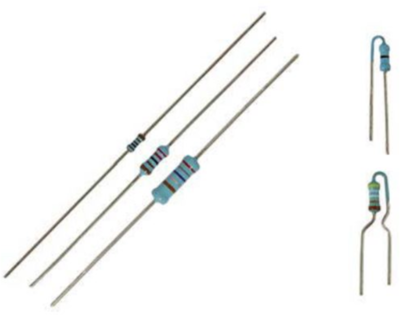

Metal film resistor, MBA02040C4707JC100, Vishay
The MBA02040C4707JC100 is a leaded metal film resistor with established reliability. This product is the perfect choice for all high-reliability applications typically found in military, aircraft and spacecraft electronics.
Features
- Established reliability
- Advanced thin film technology
- Intrinsic sulfur resistance
- Single lot date code
Applications
- Military
- Avionics
- Space
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.25 W | |
| Length | 3.6 mm | |
| Design | axial | |
| max. operating temperature | 155 °C | |
| Assembly | THT | |
| Isolation voltage | 75 V | |
| min. operating temperature | -55 °C | |
| diameter | 1.6 mm | |
| Temperature coefficient | ±50 ppm/K | |
| Version | metal film resistor | |
| Tolerance | ±5 % | |
| ohmic resistance | 470 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
