MBA02040C2401FCT00 | Vishay

Metal film resistor, 2.4 kΩ, 0.25 W, ±1 %, MBA02040C2401FCT00

Order No.: 14E510
EAN: 4099879668950
MPN:
MBA02040C2401FCT00
Series: MBA 0204

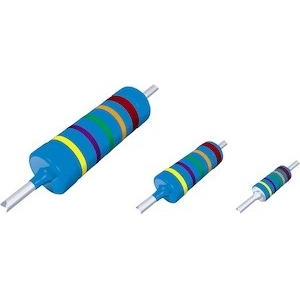

MBA02040C2401FCT00 Vishay Wirewound Resistors Image 1
MBA02040C2401FCT00 Vishay Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.0393 € *
Available: 4,042 pcs.
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0393 €
500 pcs.
0.0357 €
1000 pcs.
0.0309 €
5000 pcs.
0.0286 €
10000 pcs.
0.0250 €
*incl. VAT plus shipping costs
Subject to prior sale

Metal film resistor, MBA 0204-50 CT 1% 2K4, Vishay

The MBA 0204-50 CT 1% 2K4 is a leaded metal film resistor with established reliability. This product is the perfect choice for all high-reliability applications typically found in military, aircraft and spacecraft electronics.

Features

  • Established reliability
  • Advanced thin film technology
  • Intrinsic sulfur resistance
  • Single lot date code

Applications

  • Military
  • Avionics
  • Space
Technical specifications
Filter Property Value
min. operating temperature -55 °C
diameter 1.6 mm
Isolation voltage 75 V
Power 0.25 W
max. operating temperature 125 °C
Tolerance ±1 %
Assembly THT
Version metal film resistor
Design axial
Length 3.6 mm
ohmic resistance 2.4 kΩ
Temperature coefficient ±50 ppm/K
Logistics
Property Value
Original Packaging Reel with 5,000 pieces
Customs tariff number 85332100
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
