MBA02040C1102FCT00 | Vishay

Metal film resistor, 11 kΩ, 0.25 W, ±1 %, MBA02040C1102FCT00

Order No.: 14E590
EAN: 4099879669117
MPN:
MBA02040C1102FCT00
Series: MBA 0204

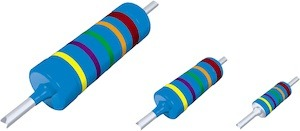

MBA02040C1102FCT00 Vishay Wirewound Resistors Image 1
MBA02040C1102FCT00 Vishay Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.1131 € *
Available: 1,917 pcs.
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1131 €
10 pcs.
0.1000 €
100 pcs.
0.0702 €
300 pcs.
0.0500 €
1000 pcs.
0.0417 €
*incl. VAT plus shipping costs
Subject to prior sale

Metal film resistor, MBA 0204-50 CT 1% 11K, Vishay

The MBA 0204-50 CT 1% 11K is a leaded metal film resistor with established reliability. This product is the perfect choice for all high-reliability applications typically found in military, aircraft and spacecraft electronics.

Features

  • Established reliability
  • Advanced thin film technology
  • Intrinsic sulfur resistance
  • Single lot date code

Applications

  • Military
  • Avionics
  • Space
Technical specifications
Filter Property Value
Temperature coefficient ±50 ppm/K
Power 0.25 W
max. operating temperature 125 °C
ohmic resistance 11 kΩ
min. operating temperature -55 °C
Version metal film resistor
Tolerance ±1 %
Length 3.6 mm
Isolation voltage 75 V
diameter 1.6 mm
Design axial
Assembly THT
Logistics
Property Value
Country of origin CZ
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
