GBS204L11479KLX000 | Vishay
Wirewound resistor, 4.7 Ω, 100 W, ±10 %, GBS204L11479KLX000
Order No.: 64E614
EAN: 4099879705129
MPN:
GBS204L11479KLX000
Unit Price (€ / pc.)
80.5987 € *
Available: 10 pcs.
Leadtime: 10 Weeks **

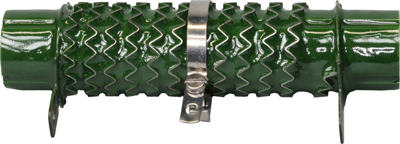

Wirewound resistor, GBS 20/165E 10% 4R7, Vishay
The GBS 20/165E 10% 4R7 is a vitreous wirewound resistor with corrugated ribbon perfect choice for high continuous power dissipation up to 1000 W and is offered with an optional adjustable type. This product fulfill the requirements for power circuit and motor mounted apparatus components. With their high pulse power capability, it is the ideal choice for inrush limiters. Typical applications include but are not limited to drive systems, power supplies, frequency inverters, AC filters, and snubber resistors.
Features
- Excellent pulse load capability
- Low ohmic values
- Corrugated ribbon construction aids rapid cooling
- Non-flammable and enhanced humidity protection

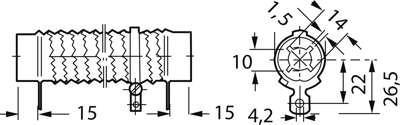

Technical specifications
| diameter | 24 mm | |
| Power | 100 W | |
| Length | 165 mm | |
| Version | high load wire resistor | |
| Design | axial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 350 °C | |
| ohmic resistance | 4.7 Ω |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85332900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
