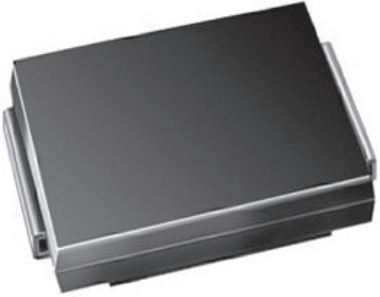

SMCJ5.0A-E3/57T | Vishay
SMD TVS diode, unidirectional, 1.5 kW, 5 V, DO-214AB, Vishay SMCJ5.0A-E3/57T
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3927 €
50 pcs.
0.3451 €
250 pcs.
0.2689 €
1000 pcs.
0.2451 €
2000 pcs.
0.2273 €
*incl. VAT plus shipping costs
Subject to prior sale
Transient voltage suppressor, SMCJ5.0A-E3/57T, Vishay
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Features
- Ideal for automated placement
- Glass passivated chip junction
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pulse power loss | 1.5 kW | |
| Version | unidirectional | |
| Assembly | SMD | |
| Enclosure | DO-214AB | |
| min. operating temperature | -55 °C | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 6.4 V | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
