SMBJ33CA-E3/52 | Vishay

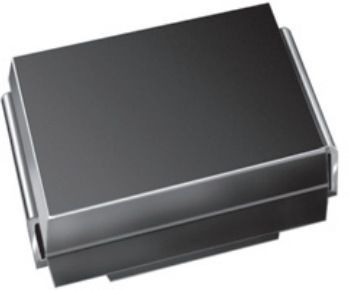

SMD TVS diode, bidirectional, 600 W, 33 V, DO-214AA, Vishay SMBJ33CA-E3/52
Unit Price (€ / pc.)
0.1488 € *
Standard delivery time from the manufacturer is: 13 Weeks
Transient voltage suppressor, SMBJ33CA-E3/52, Vishay
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Features
- Ideal for automated placement
- Glass passivated chip junction
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| Rated blocking voltage | 33 V | |
| Version | bidirectional | |
| Enclosure | DO-214AA | |
| Pulse power loss | 600 W | |
| Breakdown voltage | 36.7 V | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
