SMBJ12A-E3/52 | Vishay

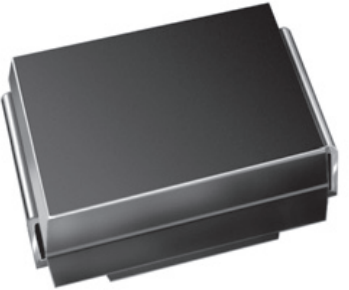

SMD TVS diode, unidirectional, 600 W, 12 V, DO-214AA, Vishay SMBJ12A-E3/52

Order No.: 69S6465
MPN:
SMBJ12A-E3/52
SMBJ12A-E3/52 Vishay TVS Diodes
Image may differ
Unit Price (€ / pc.)
0.1273 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
95.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
750 pcs.
0.1273 €

Transient voltage suppressor, SMBJ12A-E3/52, Vishay

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.

Features

  • Ideal for automated placement
  • Glass passivated chip junction
  • Excellent clamping capability
  • Very fast response time
  • Low incremental surge resistance
Technical specifications
Rated blocking voltage 12 V
Assembly SMD
Enclosure DO-214AA
Pulse power loss 600 W
Version unidirectional
min. operating temperature -55 °C
max. operating temperature 150 °C
Breakdown voltage 13.3 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
