SMA5J5.0A-E3/61 | Vishay

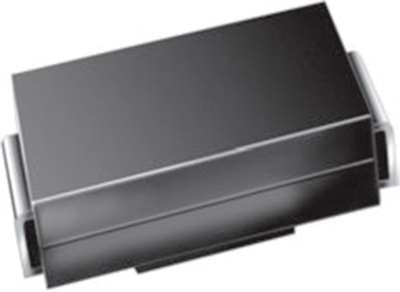

SMD TVS diode, unidirectional, 500 W, 5 V, DO-214AC, Vishay SMA5J5.0A-E3/61
Unit Price (€ / pc.)
0.1952 € *
Standard delivery time from the manufacturer is: 9 Weeks
SMD-Suppressor-Dioden Typ Vishay SMA5J.
AEC-Q101 qualifiziert; Impuls-Spitzenverlustleistung: 500 W, Sperrschichttemperatur: –55 bis +150 °C, Gehäuse: DO214AC.
Unidirektionale Ausfürung.
Type: SMA5J5.0A-E3/61
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 175 °C | |
| Pulse power loss | 500 W | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 6.4 V | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Enclosure | DO-214AC | |
| Version | unidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1,800 pieces |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
