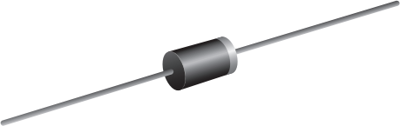

P6KE6.8A-E3/54 | Vishay
TVS diode, unidirectional, 600 W, 5.8 V, DO-204AC, Vishay P6KE6.8A-E3/54
Unit Price (€ / pc.)
0.3070 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
6.14 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3070 €
100 pcs.
0.2689 €
500 pcs.
0.2392 €
2000 pcs.
0.2154 €
4000 pcs.
0.1952 €
*incl. VAT plus shipping costs
Subject to prior sale
Transient voltage suppressor, P6KE6.8A-E3/54, Vishay
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Features
- Glass passivated chip junction
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DO-204AC | |
| Rated blocking voltage | 5.8 V | |
| Breakdown voltage | 6.45 V | |
| Assembly | THT | |
| Pulse power loss | 600 W | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Version | unidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
