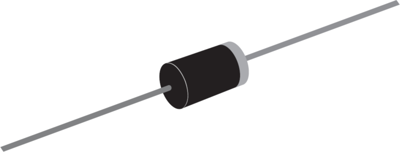

1N6281A-E3/54 | Vishay
TVS diode, unidirectional, 1.5 kW, 23.1 V, DO-201AA, Vishay 1N6281A-E3/54
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9044 €
50 pcs.
0.8806 €
250 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale
TVS Diode, 1N6281A-E3/54, Vishay
FEATURES
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- Excellent clamping capability
- Very fast response time
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 23.1 V | |
| Pulse power loss | 1.5 kW | |
| Continuous power loss | 6.5 W | |
| max. operating temperature | 175 °C | |
| Assembly | THT | |
| Breakdown voltage | 25.7 V | |
| min. operating temperature | -55 °C | |
| Enclosure | DO-201AA | |
| Version | unidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1,400 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
