T93XA 20K 10% | Vishay
Cermet trimmer potentiometer, 21 turns, 20 kΩ, 0.5 W, THT, lateral, T93XA 20K 10%
Unit Price (€ / pc.)
1.3328 € *
Available: 47 pcs.
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.2376 €
50 pcs.
1.1662 €
100 pcs.
1.0948 €
250 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, T93XA 20K 10%, Vishay
The T93 is a 3/8 inches size trimmer. Meets PC board mounting requirements. Excellent operational stability is provided by the use of a cermet element.
Features
- Industrial grade
- 0.5 W at 70 °C
- Contact resistance variation < 2 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 20 kΩ | |
| Tolerance | ±10 % | |
| Power | 0.5 W | |
| Assembly | THT | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| Rotary range, electrical | 7560 ° | |
| Mechanic rotary range | 8280 ° | |
| max. number of revolutions | 21 | |
| Seeting | lateral | |
| Connection | solder pin | |

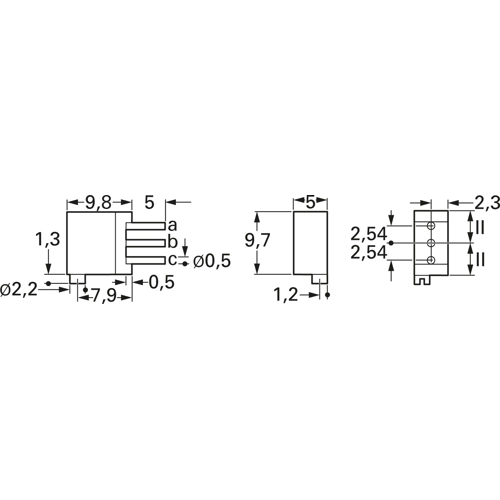

| Contact distance | RM 2.54 | |
| Length | 9 mm | |
| Width | 5 mm | |
| Height | 9 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85334010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
