M64X503KB40 | Vishay

Cermet trimmer potentiometer, 50 kΩ, 0.5 W, THT, lateral, M64X503KB40

Order No.: 07E0000
EAN: 4099879884299
MPN:
M64X503KB40
Series: M64

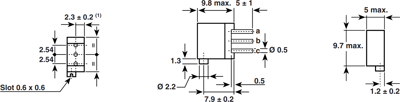

M64X503KB40 Vishay Trimmer Potentiometers Image 1

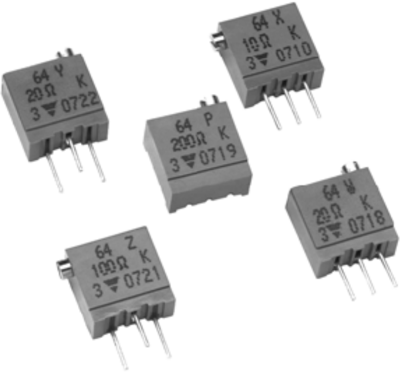

M64X503KB40 Vishay Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.1777 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
435.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
2.1777 €

Cermet trimmer, M64X503KB40, Vishay

The Model 64 is a compact cermet trimmer with a 3/8 inch multi-turn design, specifically designed for PC board mounting needs. It ensures exceptional operational stability due to its implementation of a cermet element, making it suitable for industrial-grade applications.

Technical specifications
Temperature coefficient ±100 ppm/K
Track Taper linear
Assembly THT
Width 5 mm
Mechanic rotary range 265 °
Height 9.8 mm
Power 0.5 W
Length 9.7 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
ohmic resistance 50 kΩ
Seeting lateral
Logistics
Country of origin CZ
Customs tariff number 85334010
Original Packaging Ammopack with 200 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
